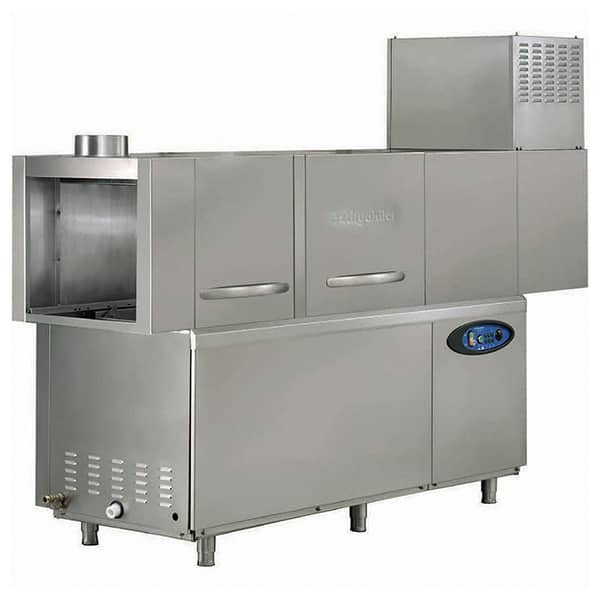

Öztiryakiler Conveyor Dishwashers, With Dryer, Obk 2000

Öztiryakiler Conveyor Dishwashers, With Dryer, OBK 2000 Features

• Conveyor, industrial dishwasher providing continuous washing

• Models available with right and left entry

• Stainless steel body, boiler, and washing tank

• Single-piece hygienic tank with rounded corners

• Drying unit with powerful fan

• Automatic, user-friendly control panel

• 3 L water consumption per wash

• High energy, detergent, and water savings

• Adjustable feet

• IPX5 water protection

• Thermostat-controlled temperatures

• Valve system preventing backflow

• Washing water temperature: 55–60 °C

• Rinse water temperature: 80–85 °C

Technical Specifications

• Model: OBK 2000

• Product Code: 072R.0010K.BD

• Type: Electric

• Voltage: 400V – 3 NPE

• Electric Power: 48 kW

• Frequency: 50 Hz

• Protection Class: IPX5

• Capacity: 2130 Plates/hour (133 racks/hour)

• Basket Size: 500 x 500 mm

• Washing Water Temperature: 55–60 °C

• Rinse Water Temperature: 80–85 °C

• Tank Capacity: 60 / 90 L

• Boiler Capacity: 18 L

• Boiler Heating Power: 27 kW

• Tank Heating Power: 9 kW

• Washing Pump Power: 0.72 / 1.10 kW

• Washing Pump Flow Rate: 440 / 659 L/min

• Rinse Pump Power: 5.37 kW

• Rinse Pump Flow Rate: 18 L/min

• Drying Fan Power: 0.45 kW

• Maximum Noise: 80 dBA

Connection Information

• Cold Water Inlet Diameter: 3/4"

• Cold Water Pressure: 2–4 bar

• Cold Water Hardness: 0–10 French Hardness

• Hot Water Pressure: 2–4 bar

• Hot Water Hardness: 0–10 French Hardness

• Drain Inlet Diameter: Ø 50 mm

Dimensions and Weight

• Width x Length x Height: 800 × 2550 × 1880 mm

• Net Weight: 320 kg

• Gross Weight: 350 kg

• Volume: 3.87 m³

Origin and Brand

• Product Origin: Turkey

• Brand: Öztiryakiler
