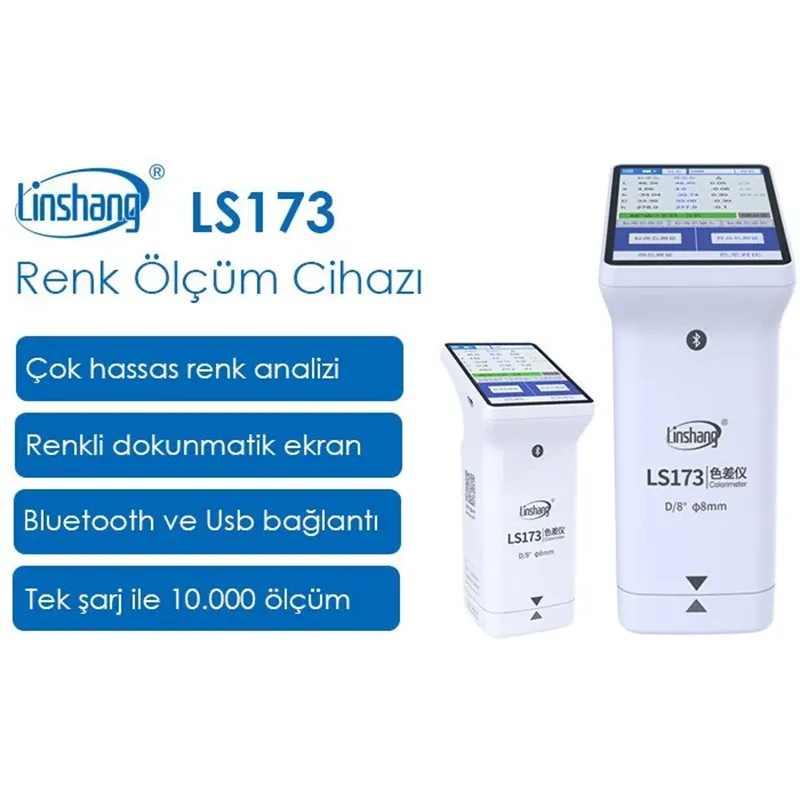

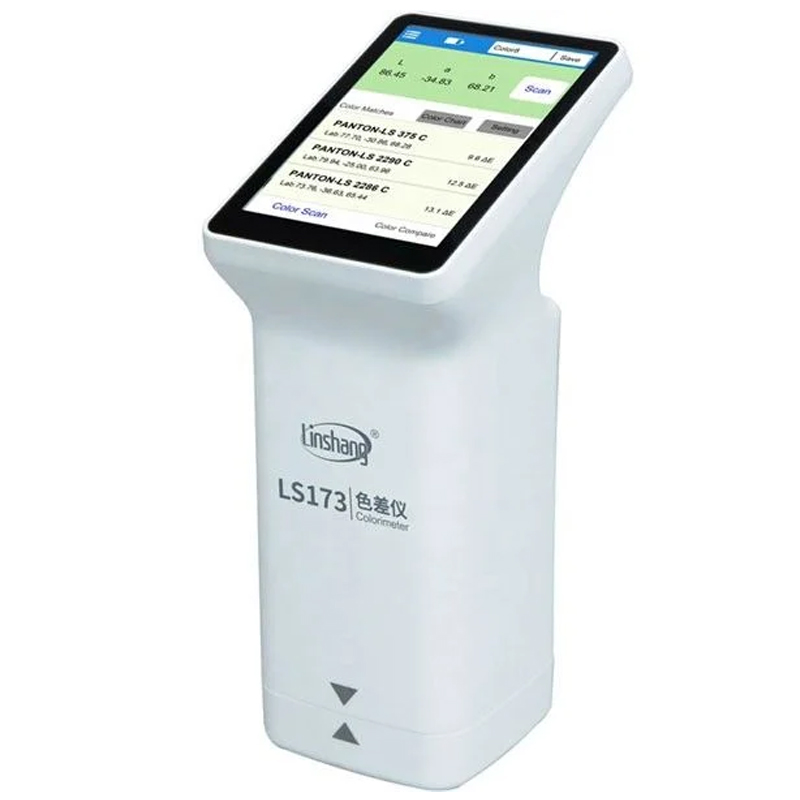

Linshang LS173 Color Measurement Device, 8mm Measurement Aperture

LS173 Color Measurement Device | 8mm Measurement Aperture

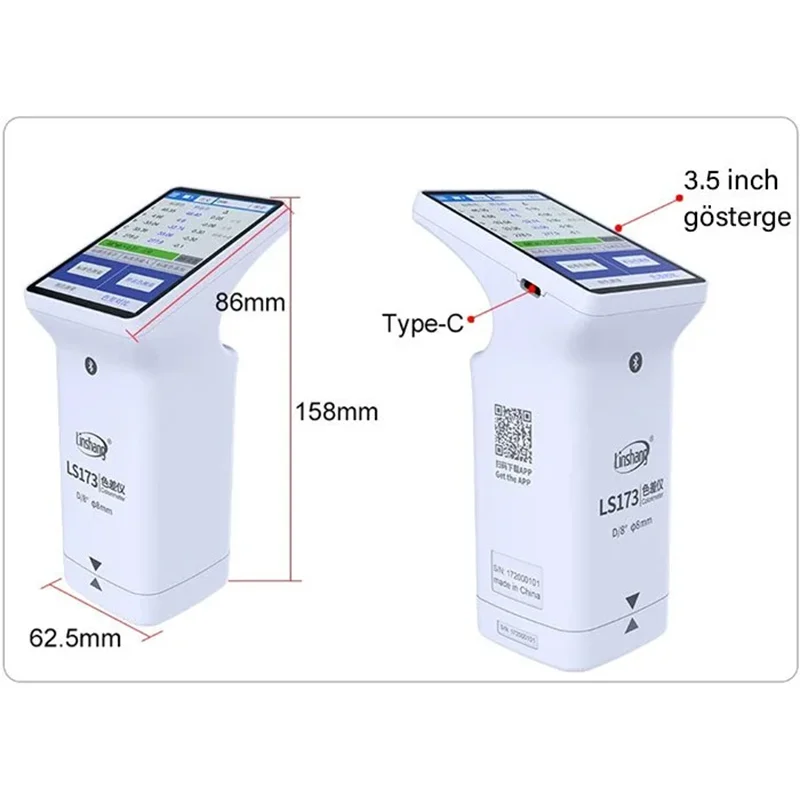

• The LS173 color measurement device is a multifunctional colorimeter equipped with a 3.5-inch IPS color capacitive touch screen.

• The device's screen is inclined at 20 degrees; this provides the user with an excellent viewing angle and makes the screen easy to read.

• Thanks to its user-friendly interface, color measurement can be done in one step, and color comparison in two steps.

• Notes can be added to the measured colors and saved to memory to compare with future measurements.

• It has a large data storage capacity, with 1000 colors and 1000 comparisons.

• Colors can be shared by connecting to the mobile application (LSColor App) via Bluetooth.

• The application compatible with Android or iOS can be downloaded by scanning the QR code on the device.

• It is charged via a USB-C connection; approximately 10,000 measurements can be made with a full charge.

• Linshang LS173 is suitable for color measurement on many surfaces such as paint, metal, stone, ceramic tile, and plastic.

• Thanks to the integrated sphere light source, accurate color measurement can be made on highly glossy samples.

• Color format and color chart settings can be made according to user preference; analyses are displayed based on these preferences.

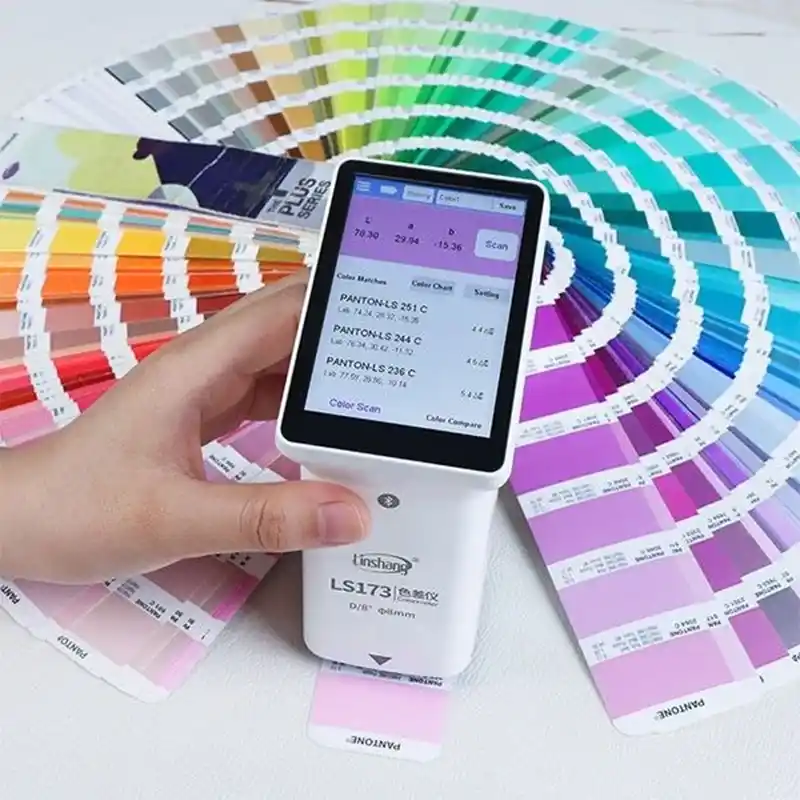

• With the built-in color card database, the top 3 closest color card results to the measured color are automatically displayed.

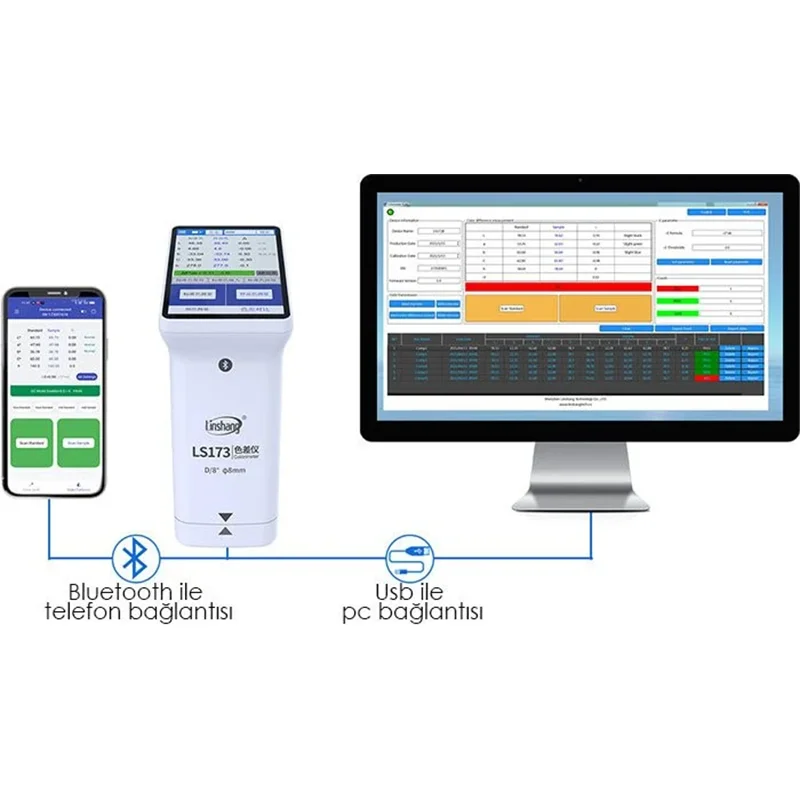

• Measurements can be made by connecting to a smartphone via Bluetooth and to a computer via USB connection.

• The protective cover located at the bottom of the device is used for both sensor protection and calibration.

• Thanks to its ergonomic structure, it is easy to carry and comfortable to hold.

• Package contents: LS173 device, calibration/protection cap, USB cable, cleaning cloth, and user manual.

Technical Specifications

• Measurement Aperture: 8 mm

• Measurement Time: 1 second

• Data Transmission: USB and Bluetooth

• Illumination Technology: D/8, including specular component (SCI)

• Light Source: LED

• Color Formats: Lab, Luv, LCh, Yxy, CMYK, RGB, HEX

• Color Difference Formulas: ΔEab, ΔEuv, ΔE94, ΔEcmc(2:1), ΔEcmc(1:1), ΔE00

• Color Chart Compatibility:

  • PANTON-LS C 2019

  • PANTON-LS U 2019

  • NCS-LS S 2019

  • RAL-LS K7 2019

• Display: Color capacitive touch screen with 480 × 320 resolution

• Measurement Conditions: Light source D65, 10-degree field of view
