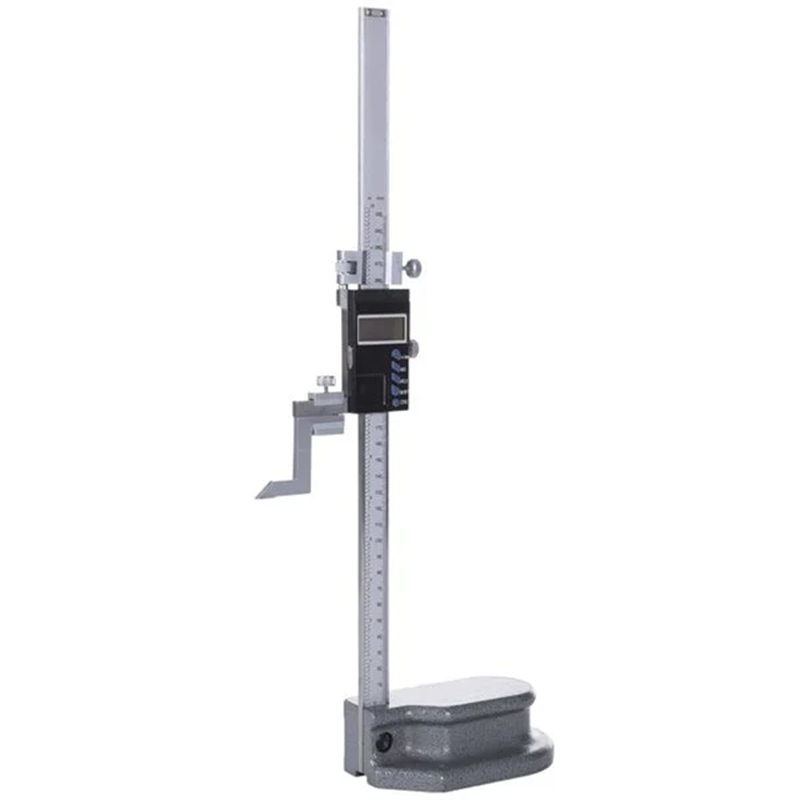

Loyka 4025 Single Column Electronic Height Gauge, 300 mm

Loyka 4025 Single Column Electronic Height Gauge, 300 mm

• Loyka 4025 height gauge is a measuring device with a fixed caliper on it for taking height measurements in mm/inch, ensuring precise measurements and marking the part.

• With the Loyka 4025 height gauge, you can perform your measurements in two different measurement units (mm/inch).

• You can manually turn the device on and off with the On/Off button.

• The outer structure of the height gauge is made of stainless metal.

• The device has an RS232 data output feature.

• Thanks to the ZERO function of the Loyka 4025 electronic height gauge, the values on the screen can be reset.

• With the wide LCD screen of the height gauge, you can easily read the data from the measurements made.

• Thanks to the HOLD feature of the digital height gauge, you can fix the measurement data on the screen.

• Thanks to the ABS feature, it remembers the zero point set at the first use and the zeroing position remains the same until the next battery change.

• Measurement Range: 0 … 300 mm / 0 … 12 inch

• Accuracy:

  • ± 0.03 mm in the range of 0 … 200 mm

  • ± 0.04 mm in the range of 200 … 300 mm

• Display: LCD screen

• Display Resolution: 0.01 mm / 0.0005 inch

• Response Time: 1.5 m/s

• Outer Structure: Stainless steel

• Hold Feature: Yes

• ABS Feature: Yes

• Inch and Millimeter Measurement: Yes

• Zeroing Function: Yes

• On/Off Button: Yes

• Storage Temperature: -20 degrees … +60 degrees

• Operating Temperature: 0 degrees … +40 degrees

• Power Source: CR2032 battery

• Weight: 3.5 kg
