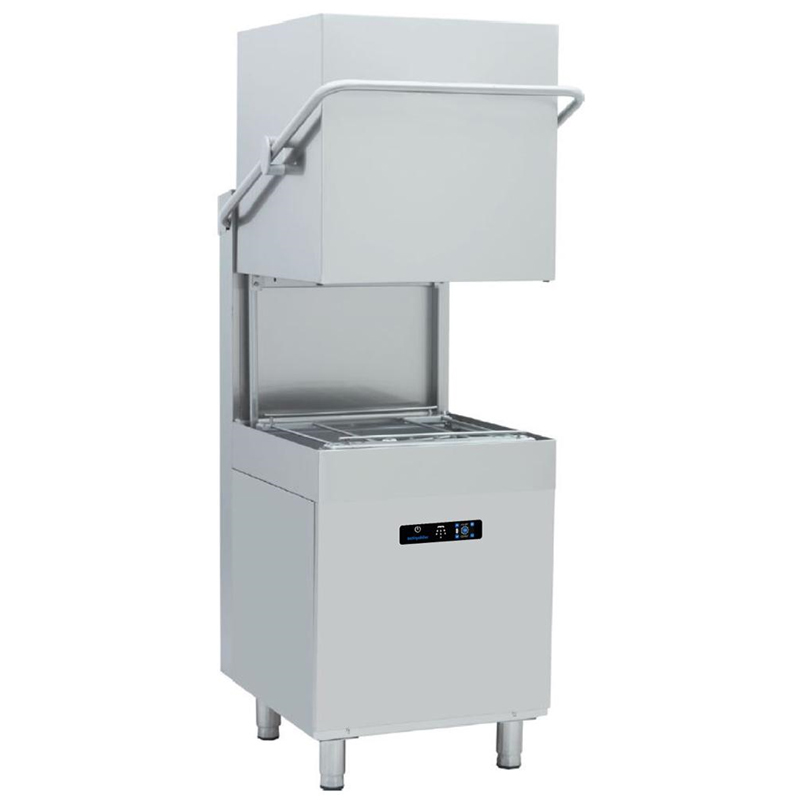

Öztiryakiler Door-Type Dishwasher, Touch Screen OBM 1080 T

Öztiryakiler Door-Type Dishwasher, Touch Screen OBM 1080 T Features

• Performance improved new version of the previous model 1M.071D.00000.BB

• Ergonomic and fast dishwashing with door-type usage

• Stainless steel body, boiler, and seamless hygienic washing tank

• Washing capacity of 69 baskets / 1080 plates per hour

• 5 different washing programs with options suitable for needs

• Low water consumption of 2.8 liters per washing cycle

• Temperature and warning information can be monitored via digital screen

• Thermostat-controlled washing and rinsing temperatures

• Body with insulation suitable for IPX5 protection class

• Valf system preventing water backflow ensures hygiene guarantee

• Automatic water filling and heating system for easy start-up

• Adjustable legs for suitable usage area

• Total height with open lid: 196 cm

• Structure suitable for corner use

Package Content

• 1 Plate Basket (50 × 50 cm)

• 1 Flat Glass Basket (50 × 50 cm)

• 1 Cutlery Basket (50 × 50 cm)

Technical Specifications

• Model: OBM 1080 T

• Type: Electric

• Washing Capacity: 1080 plates/hour – 69 baskets/hour

• Washing Duration: Varies according to programs

• Washing Water Consumption: 2.8 L/cycle

• Washing Water Temperature: 57–60 °C

• Rinsing Water Temperature: 82–85 °C

• Tank Volume: 19 L

• Boiler Volume: 7 L

• Washing Pump Flow Rate: 356 L/min

• Rinsing Pump Flow Rate: 18 L/min

• Boiler Heater Power: 9 kW

• Tank Heater Power: 3 kW

• Washing Pump Power: 0.66 kW

• Rinsing Pump Power: 0.37 kW

• Drying Fan: None

• Maximum Noise: 75 dBA

Connection Information

• Voltage: 400V – 3NPE

• Electric Power: 9.66 kW

• Frequency: 50 Hz

• Hot/Cold Water Pressure: 2–4 bar

• Water Hardness: 0–10 French Hardness

Dimensions and Weight

• Width x Depth x Height: 78.5 × 67 × 148 cm

• Height with Open Lid: 196 cm

• Net Weight: 110 kg

• Gross Weight: 115 kg

• Volume: 0.76 m³

Origin and Brand

• Product Origin: Turkey

• Brand: Öztiryakiler
